Small Ketchup Tomato Sauce Processing Line Tomato Paste Production Line
产品详情:
| 产品名称: | Small Scale Tomato Ketchup Processing Line |
|---|---|
| 重量: | 460 公斤 |
参数
产品描述

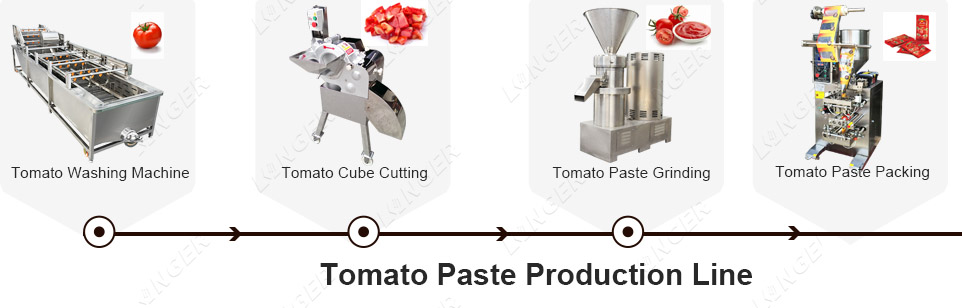

Main Machines of Tomato Paste Processing

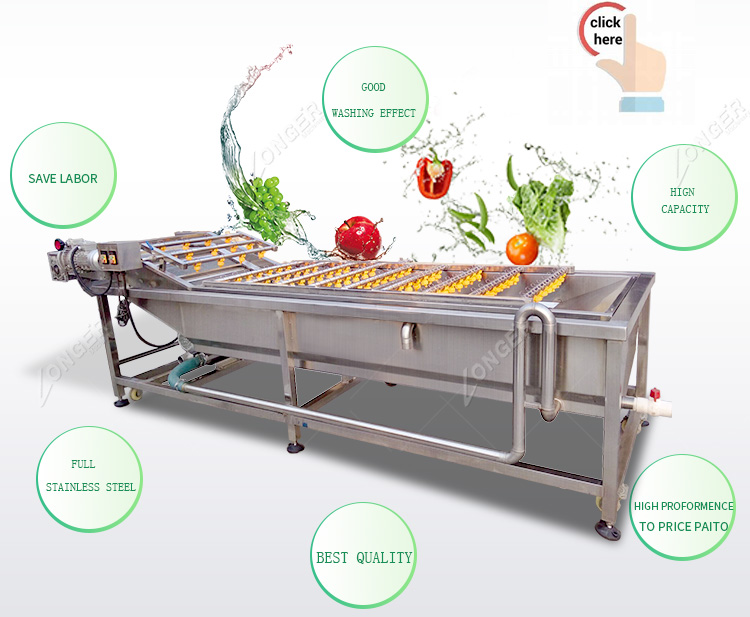

1.Tomato Washing Machine
Use of a bubble rolling, brushing, spraying technology to maximize cleaning of objects.
|

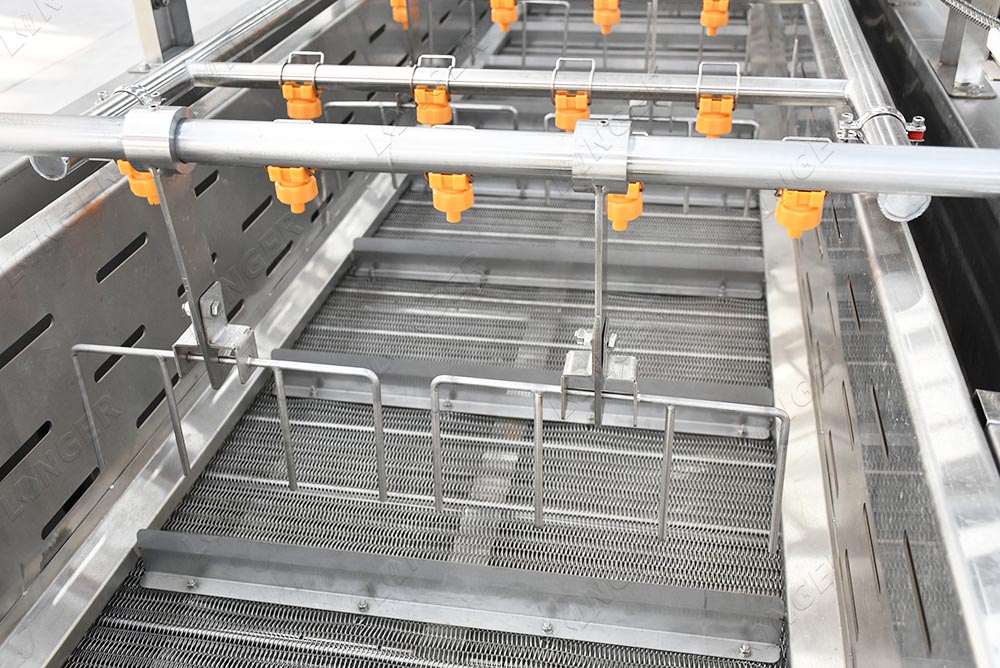

Bubble Type Washing Machine
|
Power（KW）
|
Size（MM）
|
Weight（KG）
|
Mesh width（MM）
|
|
LGXQ3000
|
2.2/0.75/1.5
|
3100*1400*1500
|
500
|
600
|
|
LGXQ4000
|
4/1.1/1.5
|
4100*1400*1500
|
700
|
800
|
|
LGGXQ5000
|
5.5/1.5/2.2
|
5100*1400*1500
|
900
|
800
|
|
LGXQ6000
|
5.5/1.5/2.2
|
6100*1400*1500
|
1000
|
800
|
|
LGXQ7000
|
5.5/1.5/3
|
7100*1400*1500
|
1200
|
800
|
|
LGXQ8000
|
5.5/1.5/3
|
8100*1400*1500
|
1350
|
800
|
|
The above three powers are: air bubble, conveyor motor mesh belt and water pump.
|
||||

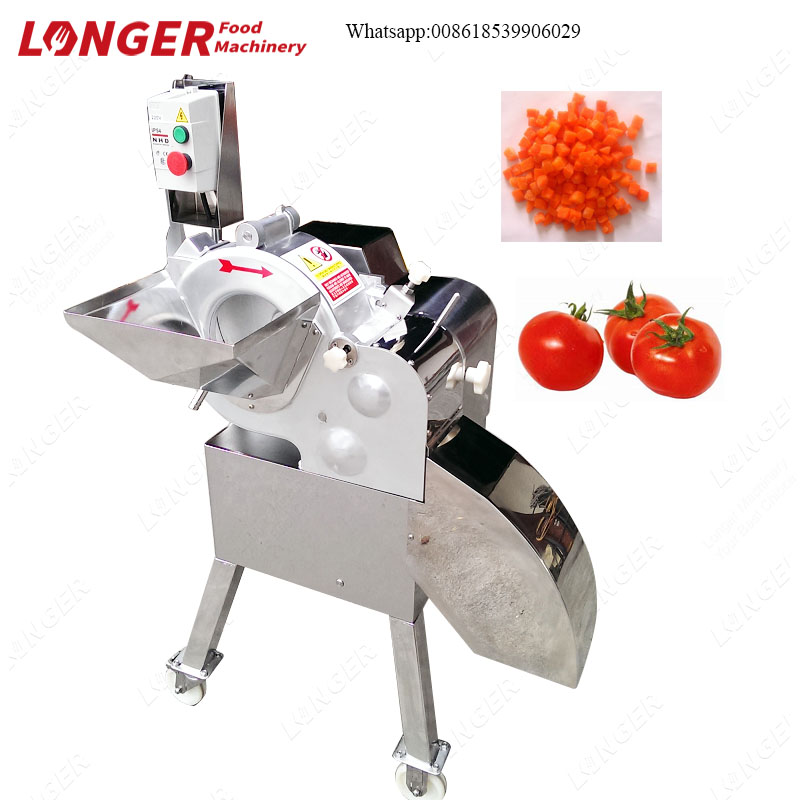

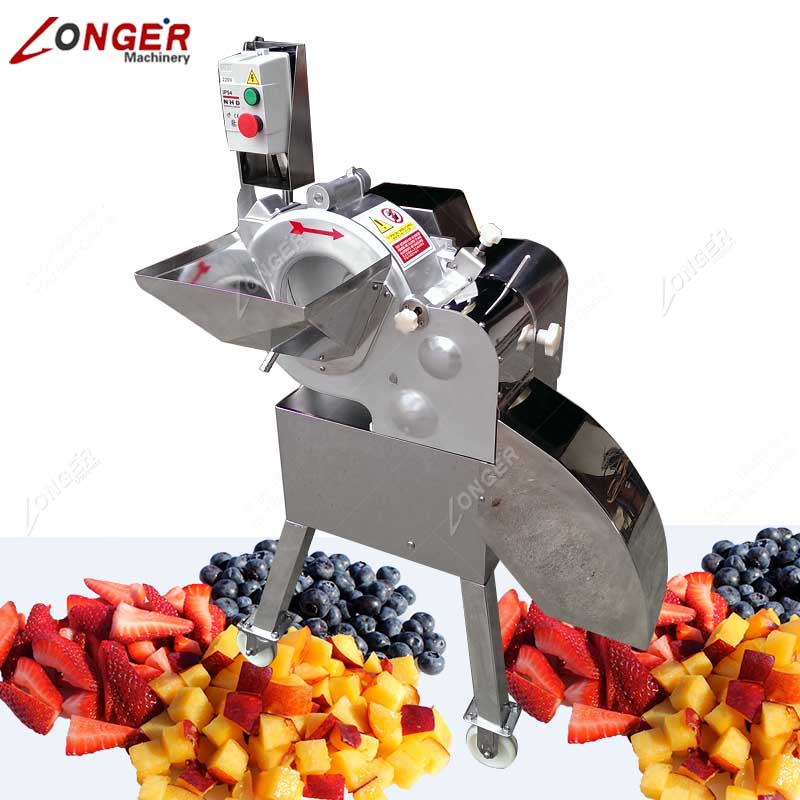

2.Tomato Cube Cutting Machine
This machine is used for cutting tomato/potato/pineapple/papaya into beautiful cube with no damage.It is characterized by three-dimensional cutting.so the surface of tomato cube is beautiful.
|
Machine’s size
|
700X800X1300 mm
|
|
切割尺寸
|
3-20 毫米
|
|
容量
|
500-800 Kg/hour
|
|
Machine’s weight
|
85 Kg
|

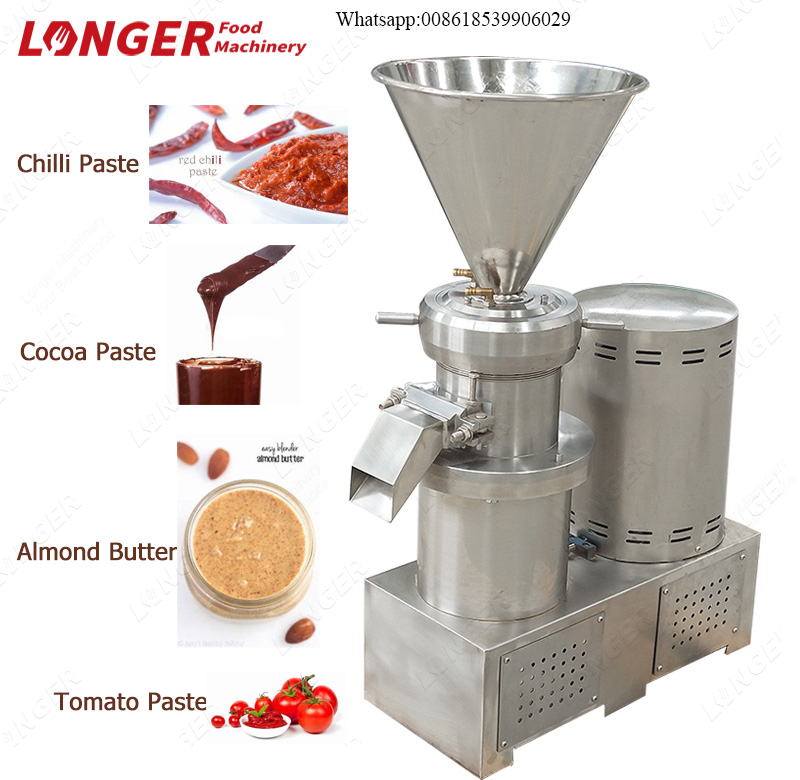

3.Tomato Paste Grinding Machine
The paste grinding machine is the processing machine for colloidal products. It has functions of cracking, cutting, milling, mixing, etc.After processing, the granularity can be 2-50um, the homogeneity is above 90%. It is the ideal processing machine for paste products production.
