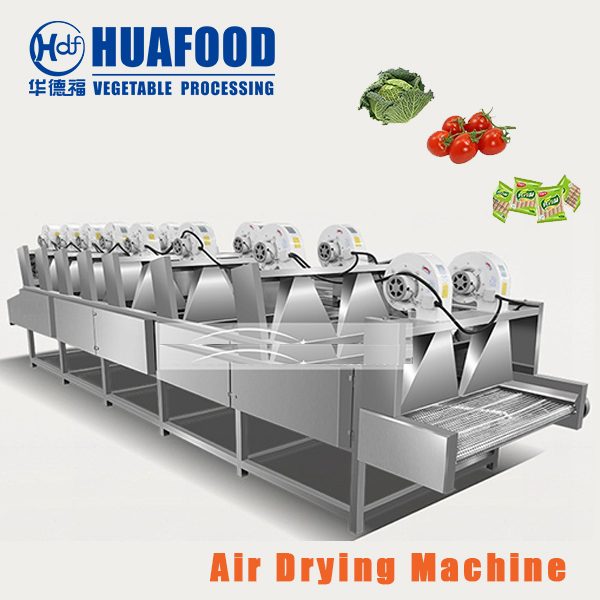

خط إنتاج آلة تنظيف أكياس التعبئة HFG-3000 لتجفيف الهواء
تفاصيل المنتج:
مكان المنشأ: | هينان هوافود, الصين |
---|---|
اسم العلامة التجارية: | فوفود |
شهادة: | ايزو,م,اس جي اس |
رقم الموديل: | HFG-3000 |
يكتب: | HFG-3000 |
سعة(kg/hr): | 500kg/hr |
Width of Belt: | 800مم |
No.of Air Fan: | 8 |
قوة: | 7.5كيلووات |
Overall Size: | 3000*1200*1600مم |
حدود
يكتب | HFG-3000 | HFG-4000 | HFG-5000 | HFG-6000 | |
سعة(kg/hr) | 500kg/hr | 800kg/hr | 1000kg/hr | 1500kg/hr | |
Width of Belt | 800مم | 800مم | 800مم | 800مم | |
No.of Air Fan | 8 | 12 | 16 | 20 | |
قوة | 7.5كيلووات | 10.5كيلووات | 13.5كيلووات | 16.5كيلووات | |
Overall Size | 3000*1200*1600مم | 4000*1200*1600مم | 5000*1200*1600مم | 6000*1200*1600مم |
فيديو
طلب
This Specialized production clean air dry line air dry water pipeline the production line is mainly used for the continuous cleaning and drying of oil and dirt on the surface of products after sterilization at high and low temperature Can be customized as required and can be directly integrated into the packing line to achieve streamlined production.
Feathers
cleaned in cleaning groove is covered by water, attached to the surface of quite a number of large pieces of soil loss, the conveyor belt into the drum washing machine inlet, cleaning material into the hopper into the rotating drum, the drum rotation in the pool, use of its own gravity separation of cleaning as propulsion, to realize automatic cleaning material.The cleaning material moves forward along the roller wall. During the movement, the cleaning material is constantly washed by water, the friction between cleaning material, the brushing between turning and the friction between cleaning material and the roller wall, and the cleaning process of cleaning material surface is completed under the joint action.
