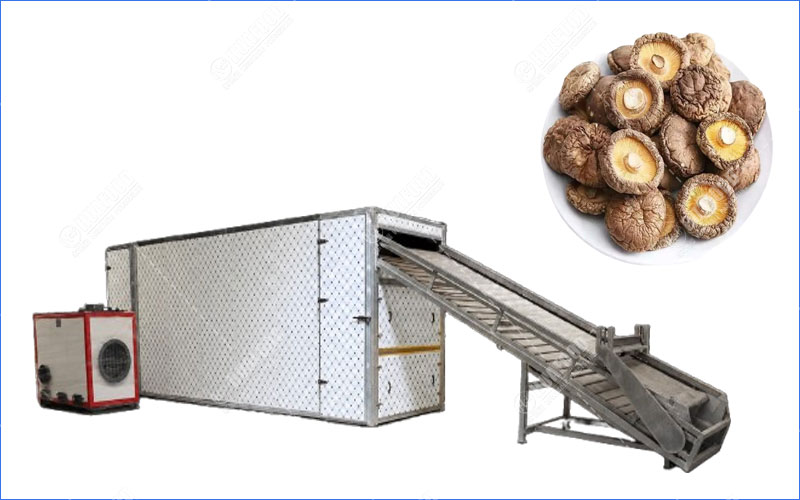

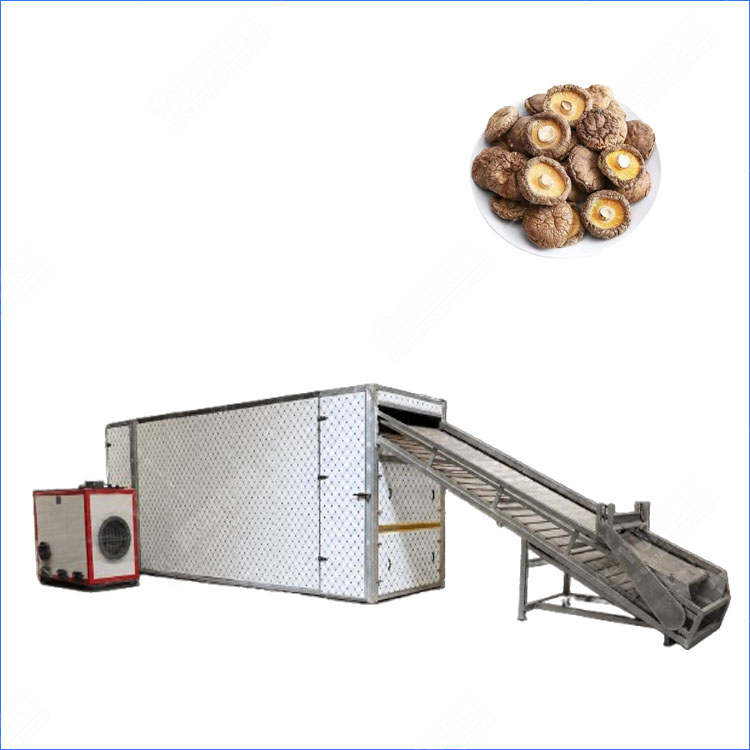

The Industrial Mushroom Dehydrator Machine with Mesh Belt Dryer is a continuous drying system specifically designed for mushroom products. It is suitable for the large-scale dehydration of various edible fungi, including shiitake, oyster, king oyster, enoki, white button, and agrocybe mushrooms. Utilizing a multi-layer mesh belt structure combined with circulating hot-air drying technology, the equipment achieves uniform, efficient, and low-temperature drying under controlled temperature and airflow conditions. This process maximizes the retention of nutritional content, aromatic compounds, and natural color, making it an ideal choice for deep-processing enterprises in edible mushroom production regions.

The core operating principle of this equipment is continuous hot-air circulation drying. Wet mushrooms are evenly spread onto multi-layer stainless steel mesh belts at the feed end; driven by a variable-frequency motor, the belts move slowly through the drying chamber at an adjustable speed. Clean hot air—generated by an internal heat source (configurable as electric heating, a gas-fired hot air furnace, or a steam heat exchanger)—is circulated into the unit. It flows downward through the material on each mesh layer, causing surface moisture to evaporate continuously. A portion of the warm, humid exhaust air is vented out, while the remainder is dehumidified and mixed with fresh hot air for reuse, thereby ensuring drying efficiency while conserving energy. The dried mushrooms are automatically discharged at the outlet, ready for immediate packaging or subsequent processing.

1. Effectively Preserves Natural Color and Nutrients
Mushrooms are rich in tyrosinase, making them highly susceptible to enzymatic browning at high temperatures. This equipment employs a low-temperature, high-airflow strategy (40°C–50°C) in the initial drying stage to rapidly reduce surface moisture and deactivate enzymes, thereby effectively inhibiting browning. Additionally, the enclosed tunnel drying environment minimizes oxygen exposure; combined with precise temperature control, this ensures the retention of over 95% of the mushrooms’ polysaccharides, proteins, and amino acids, resulting in a product with natural color and authentic flavor.

2. Superior Drying Uniformity Compared to Traditional Methods
Due to the irregular shapes and varying sizes of mushrooms, traditional static drying rooms often suffer from uneven drying—where edges become over-dried while centers remain moist. In contrast, this mesh-belt system continuously shifts the material’s position and heat-exposed surfaces as it cascades between layers. Coupled with a through-flow airflow design that delivers air from both above and below, the moisture content deviation within a single batch is kept within ±2%, completely resolving quality issues caused by uneven drying.

3. Continuous Production and Significantly Reduced Labor Costs
The equipment supports 24-hour continuous, unattended operation, requiring only one or two operators for loading inspections and product collection. Compared to traditional drying rooms of equivalent capacity, this system cuts labor requirements by over 60% and eliminates the need for manual material turning during the night—the conveyor belt’s automatic turning mechanism fully replaces manual tray-flipping tasks.

4. High Energy Efficiency and Operational Cost-Effectiveness
A hot-air recirculation design achieves a heat utilization rate exceeding 85%. High-density rock wool insulation panels (80mm thick) limit the external casing temperature rise to just 5°C above ambient levels, drastically reducing heat loss. Furthermore, variable-frequency fans automatically adjust airflow based on the load to save electricity during low-demand periods, resulting in a 30%–40% reduction in overall operating costs compared to traditional drying rooms.

1. Multi-layer Mesh Belt with Independent Temperature Control
The equipment features a 5–8 layer stainless steel mesh belt design. Temperature parameters can be set independently for each drying zone, allowing for flexible adjustments based on the changing moisture content of the mushrooms at different stages. Higher temperatures are used in the initial stage to rapidly evaporate surface moisture, while temperatures are gradually lowered in the middle and final stages to prevent surface crusting or scorching.

2. Variable Frequency Speed ​​Control and Adjustable Bed Depth
The mesh belt speed is continuously adjustable via a variable frequency drive (VFD). Additionally, the feed end is equipped with an adjustable material-leveling device to control the bed depth (typically 3–8 cm), accommodating the specific drying requirements for mushrooms of varying moisture content, sizes, and varieties.

3. Hot Air Circulation and Moisture Exhaust System
A high-flow centrifugal circulation fan, combined with an airflow deflector design, ensures hot air penetrates evenly through every layer of material, eliminating “dead zones” in the drying process. The moisture exhaust system activates automatically based on feedback from internal humidity sensors, precisely controlling exhaust and fresh air intake to maintain a stable drying environment.

4. Modular Sectional Design
The machine is assembled from modular sections—including the feed section, multiple drying sections, a cooling section, and the discharge section—facilitating easy transport, installation, and future capacity expansion. Partitions and sealing strips are installed between sections to prevent airflow crossover between different temperature zones.

1. Significant Increase in Product Premium
The finished dried mushrooms feature a natural golden hue and intact slices, and they rehydrate rapidly (restoring the texture of fresh mushrooms after just 5–8 minutes of soaking in hot water). Positioned as a premium dehydrated mushroom product, they command an ex-factory price 15%–25% higher than standard hot-air dried products, directly boosting profit margins for processing enterprises.

2. Shortened Return on Investment (ROI) Period
Taking a medium-sized system with a daily capacity of 5 tons of fresh mushrooms as an example: although the initial equipment investment is slightly higher than that of traditional drying rooms, the combined advantages of labor savings, reduced energy consumption, and product premiums allow the cost difference to be recouped within 12–18 months. Thereafter, the system continues to generate higher net profits for the facility.

3. Reliable Delivery and Order Fulfillment
Continuous batch production capabilities ensure stable, controllable daily throughput, unaffected by worker scheduling or weather conditions. During peak harvest seasons, the equipment’s rapid dehydration capacity allows for the timely processing of fresh raw materials, preventing losses caused by spoilage from stockpiling. This reliable supply capability also encourages traders to establish long-term partnerships.

4. Export Compliance and Market Access
Constructed entirely from food-grade stainless steel and equipped with a PLC control system that provides traceable production records, the equipment meets the hygiene and safety standards for dehydrated vegetable processing machinery in major export markets—such as Europe, the US, Japan, and South Korea—thereby helping enterprises easily pass international certification audits like BRC and FDA.

This industrial mushroom dehydrator, featuring a multi-layer mesh belt conveyor system, independent sectional temperature control, and intelligent PLC management, effectively resolves key challenges in mushroom dehydration—such as browning, uneven drying, and nutrient loss. Surpassing traditional drying rooms in drying uniformity, energy efficiency, and final product quality, this equipment is the ideal choice for edible mushroom processing enterprises seeking to scale up operations and achieve standardization and brand enhancement.

If you are planning to build a new mushroom drying line or upgrade an existing one, please leave a message below with details regarding your daily fresh mushroom processing capacity, mushroom varieties, and intended end-use (direct consumption, raw material for further processing, or export). Our professional engineers will provide a customized equipment solution and a quotation with detailed technical specifications.
