Industrial Fruit Bubble Washing Machine with Ozone Sterilization
Product Details:
| Place of Origin: | Henan Huafood, China |
|---|---|
| Brand Name: | HUAFOOD |
| Certification: | ISO,CE,SGS |
| Model Number: | HQP-4000 |
| Cleaning type | Apple, sand fruit, begonia, wild berry, loquat, hawthorn, hawthorn, pear, cypress, rose hip, rowan tree, apricot, cherry, peach, plum, plum, blackberry, strawberry, pineapple raspberry, orange, orange, Lemon, grapefruit, banana, banana, date, grape, grape Blueberry, mango, kiwi, bayberry, persimmon, mulberry, fig, jackfruit, milk fruit, dragon fruit, lychee, longan, coconut, betel nut, mangosteen, avocado, wolfberry, cherry tomatoes, akobi |
Industrial Fruit Bubble Washing Machine with Ozone Sterilization is a professional fruit cleaning system specially designed for processing a wide variety of fruits, including apples, oranges, mangoes, grapes, strawberries, blueberries, peaches, pears, and other fresh produce. Combining advanced air bubble washing technology with ozone sterilization, this machine effectively removes soil, dust, pesticide residues, insects, leaves, and surface contaminants while maintaining the natural appearance and quality of the fruit. It is widely used in fruit packing houses, fresh-cut fruit processing plants, agricultural cooperatives, fruit export companies, and food processing factories that require high standards of hygiene and product safety.
Ideal Applications
The industrial fruit bubble washing machine is suitable for:
- Apple processing plants
- Orange and citrus packing facilities
- Mango processing lines
- Grape cleaning operations
- Strawberry and blueberry processing plants
- Fresh-cut fruit factories
- Fruit export and packaging companies
- Agricultural cooperatives and fruit farms
Industrial Fruit Washing Machine Parameters
| Model | Machine Size (mm) |
Power (kw) |
Weight (kg) |
Parameters | Washing Capacity |
function |
| HQP-2500 | 2500*1000*1300 | 3.75 | 250 | 1.Machine material:SS304 2.Power:380v/50hz/3-phase 3.Belt type: Stainless steel mesh chain/stainless steel chain plate 4.Automatic mesh belt transportation 5.Speed can be adjusted 6.With high presser spraying system 7.With bubble surfacing system 8.Simple operation and control 9.Provide customized service. |
500kg/h | 1.High pressure
2.Ozone 3.Ultrasonic 4.Can be customized according to customer needs |
| HQP-4000 | 4000*1200*1300 | 4.1 | 400 | 1000kg/h | ||
| HQP-5000 | 5000*1200*1300 | 5.1 | 500 | 1500kg/h | ||
| HQP-6000 | 6000*1200*1300 | 5.5 | 600 | 2000kg/h |
Video

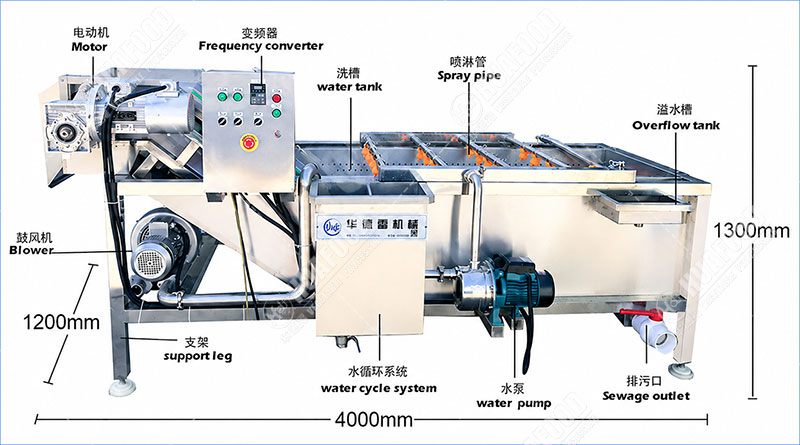

Fruit Washing Machine Working principle
The industrial fruit washing machine operates through a combination of air bubble agitation, water circulation, ozone sterilization, and spray rinsing technologies.
First, fruits are gently fed into the washing tank filled with clean water. The air blower generates large amounts of bubbles that create a tumbling washing effect, allowing fruits to roll naturally in the water. This process effectively loosens and removes dirt, mud, and foreign materials attached to the fruit surface.
Meanwhile, the ozone generator injects ozone into the washing water, helping eliminate bacteria, fungi, pesticide residues, and harmful microorganisms. After bubble washing and sterilization, the fruits are conveyed to the spray cleaning section, where high-pressure water sprays provide secondary rinsing to ensure thorough cleaning before the fruits proceed to grading, drying, packaging, or further processing stages.
Features
1. Advanced Air Bubble Cleaning Technology
Powerful air bubbles create a gentle tumbling action that thoroughly cleans fruit surfaces without causing damage.
2. Integrated Ozone Sterilization System
The ozone sterilization function effectively reduces microbial contamination and pesticide residues on fruits.
3. SUS304 Stainless Steel Construction
The entire machine is manufactured from food-grade SUS304 stainless steel to ensure hygiene, corrosion resistance, and long service life.
4. Continuous Automatic Operation
The conveyor-based design enables continuous fruit washing for high-capacity industrial production environments.
Advantages
1. Gentle Cleaning for Delicate Fruits
The bubble washing process protects soft-skinned fruits from bruising while maintaining their natural freshness.
2. Improved Food Safety Standards
Ozone treatment enhances fruit sanitation and helps meet export and food processing hygiene requirements.
3. Reduced Water Consumption
The water circulation system minimizes water usage while maintaining excellent cleaning performance.
4. Suitable for Multiple Fruit Types
One machine can efficiently process a wide range of fruits with different sizes, shapes, and surface textures.
Fruit Washing Machine Benefits
1. Higher Product Quality
Clean and attractive fruits increase market value and improve consumer confidence.
2. Extended Shelf Life
Effective sterilization reduces microbial growth, helping fruits stay fresh for longer periods.
3. Lower Labor Costs
Automatic washing significantly reduces manual cleaning work and improves production efficiency.
4. Increased Production Capacity
Continuous operation allows processors to handle large volumes of fruit with consistent cleaning results.
Conclusion
The Industrial Fruit Bubble Washing Machine with Ozone Sterilization provides a highly efficient, hygienic, and fruit-friendly cleaning solution for modern fruit processing operations. By combining gentle bubble washing, advanced ozone sterilization, and automatic spray rinsing, the machine effectively removes contaminants while preserving the freshness, appearance, and quality of various fruits. Its high cleaning efficiency, low operating cost, and wide application range make it an ideal choice for fruit processors seeking to improve product quality and food safety.
Looking for the best fruit washing solution for your processing plant? Contact us today and leave an online message to receive detailed machine specifications, capacity options, pricing information, and customized fruit processing solutions from our professional team.
