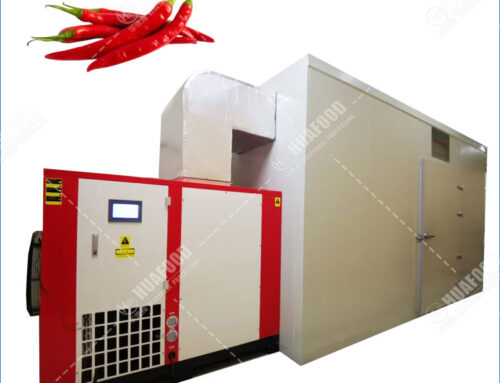

HGRB-9 Air Energy Heat Pump vegetable and fruit dehydrator
Product Details:
| Place of Origin: | Henan Huafood,China |
|---|---|
| Brand Name: | HUAFOOD |
| Certification: | ISO,CE,SGS |
| Model Number: | HGRB-9 |
| Type | HGRB-9 | |
| Power | 10.75kw | |
| Material of Board Room | Polyurethane insulation board
(optional rock wool insulation board) |
|
| No. Of fans | 9 | |
| No. Of Trolley | 4 | |
| No.of Trays | 96 | |
| Trolley Size | 860*810*1750mm | |
| Board Room Size | 3300*2000*2200mm | |
| Temperature Range | 25℃~75℃ | |
Parameters
| Type | HGRB-9 | HGRB-16 | HGRB-17 |
| Power | 10.75kw | 23.2kw | 49.65kw |
| Material of Board Room | Polyurethane insulation board
(optional rock wool insulation board) |
||
| No. Of fans | 9 | 16 | 17 |
| No. Of Trolley | 4 | 6 | 15 |
| No.of Trays | 96 | 144 | 360 |
| Trolley Size | 860*810*1750mm | 880*1200*1750mm | 880*1200*1750mm |
| Board Room Size | 3300*2000*2200mm | 5600*2200*2700mm | 8000*3000*2850mm |
| Temperature Range | 25℃~75℃ | 25℃~75℃ | 25℃~75℃ |
Video
Application
It is widely used for the heating and dehumidification of raw materials and product in pharmaceutical,chemical, foodstuff, light and heavy industries.especially for the fruit and vegetable food processing.such as leaf vegetables, cabbage,onions,carrot, apples,lemons,orange,pulms,bananas,pineapples,jujube.
Features
1.The entire machine and baking tray made of stainless steel.
2.Most of hot air inside the loop, high thermal efficiency, energy conservation.
3.The use of forced ventilation in the box high and adjustable air board, dry materials evenly.
4.Source may be steam, hot water, electricity, gas, coal, a wide choice. Machine noise, running balance.
5.With a temperature-controlled device, easy installation and maintenance. Wide range of applications can be drying various materials and is a versatile drying equipment.
6.Temperature range from room temperature to 140 degrees Celsius, the temperature is too low when ordering Remarks.
