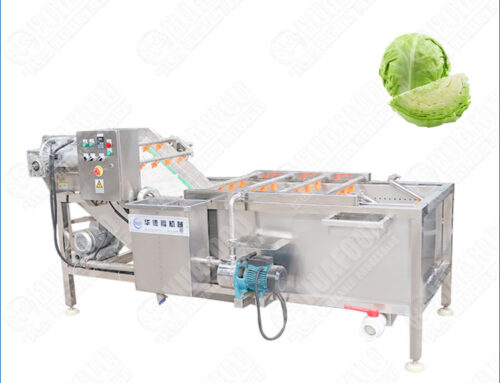

HXC-1000 spiral type vegetable washing machine

/, Leafy Vegetable/HXC-1000 spiral type vegetable washing machine
HXC-1000 spiral type vegetable washing machine2020-06-20T03:20:29+00:00

Project Description

PRODUCTS LIST

HXC-1000 spiral type vegetable washing machine

Product Details:

Place of Origin: Zhengzhou,Henan,China
Brand Name: HUAFOOD
Certification: ISO,CE,SGS
Model Number: HXC-1000

Payment & Shipping Terms:

Machine size: 4200*1100*1700*(mm)*2
Weight: 800kg
Power: 4kw
Size: 380V/50Hz
Productivity: 1000kg/hr
Chat Now!
Inquiry

Video

Parameters

Item

Parameter

Size

4200*1100*1700mm*2

Power

4kw*2

Water consumption

0.4T/h

Plate material

2.5mm ; SUS304

Small water tank

2.0mm SUS304 stainless steel

Vibrate Sieve

2mm SUS304 stainless steel

Vibrate block

Imported form Italy

Support leg

50*50*2mm ; SUS304

Centrifugal water pump

2sets, 3kw/set

Vibrate motor

2sets, 0.16kw/set

Filter motor

0.37kw

Application

On the basis of the traditional cyclone cleaning, the first to add a bubble cleaning design, the bottom of the cylinder is arranged with a high-pressure gas injection pipe, which is used to eliminate the clumping phenomenon caused by the traditional swirling vegetable washing machine when cleaning uncut vegetables, and the high-pressure bubbles can be effectively effective. Separating the vegetables into a group, solving the pure swirling type vegetable washing machine can only clean the defects of the material after cutting. The exhaust pipe is also equipped with a pressure relief valve to adjust the bubble strength when cleaning different materials.

360 degree five-cycle reversal massage cleaning + 16 high-pressure adjustable bubble vibration cleaning, the first double clean cleaning in China, whether it is whole vegetables or cut vegetables, chopped vegetables, vortex washing machine can easily cope, really Do a multi-purpose machine.

Features

1. It adopts vibrating conveying instead of traditional conveyor belt conveying, the structure is simpler, it is 5 times than the traditional conveyor belt.

2. Secondary filter wedge-shaped precision filter screen, front side 0.3mm back 1.5mm structure, finely filter the hair on the front side, insects and vegetable crumbs, and the back side can be cleaned once again.

3.Automatic hydration design, the circulating water tank is equipped with an automatic water supply device. In addition to cleaning the main water inlet of the master cylinder, the circulating water tank also has an auxiliary water supply port.

4.The auxiliary water supply port should mainly supplement the water taken away by the materials during the continuous cleaning process. When the water level reaches a predetermined low water level, it will automatically replenish the water.
