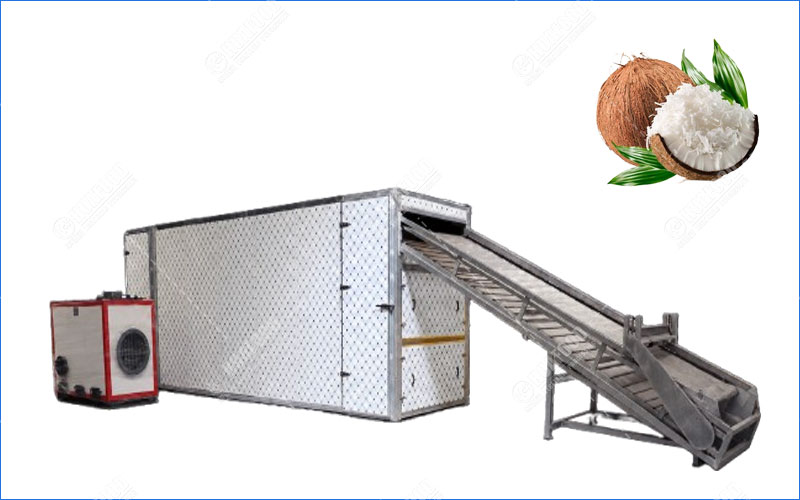

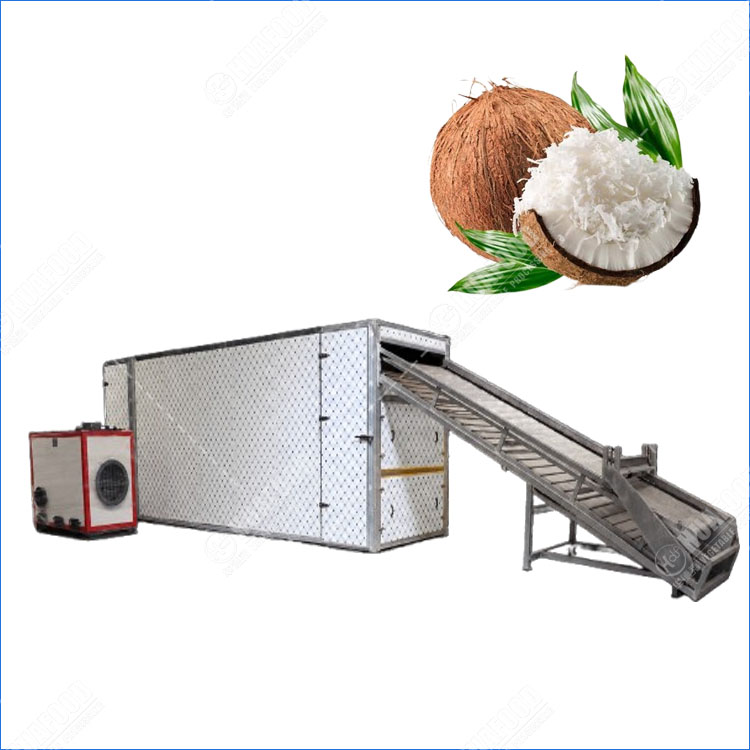

The Continuous Shredded Coconut Meat Heat Pump Dryer Machine is a state-of-the-art industrial drying solution specifically engineered for processing desiccated and shredded coconut meat (copra) with unmatched consistency and efficiency. Unlike traditional hot air dryers that rely on electric heating or fuel combustion, this machine utilizes advanced heat pump technology to achieve closed-loop dehumidification and precise temperature control, making it the ideal choice for coconut processing facilities seeking higher output quality, lower energy consumption, and uninterrupted production. Whether you are producing shredded coconut for the baking industry, snack manufacturing, or export-grade desiccated coconut, this continuous dryer ensures every batch meets the strictest moisture content standards while preserving the natural color, aroma, and oil integrity of the coconut meat.

The Continuous Shredded Coconut Meat Heat Pump Dryer operates on the reverse Carnot cycle principle (also known as the heat pump dehumidification cycle). The system works as follows:

1. Heat Absorption – The heat pump unit absorbs low-temperature heat energy from the ambient air through the evaporator.

2. Energy Amplification – The absorbed heat is compressed and upgraded to high-temperature heat energy through the refrigeration cycle, achieving an energy efficiency ratio that delivers four times the heat output compared to the electrical energy input.

3. Air Heating & Circulation – The heated air is circulated into the enclosed drying chamber, where it continuously flows through the shredded coconut material.

4. Moisture Removal – As the hot air absorbs moisture from the coconut shreds, the humid air passes through the evaporator, where water vapor is condensed and removed as liquid water, while the dehumidified air is reheated and recirculated.

5. Continuous Monitoring – Temperature, humidity, and airflow are automatically adjusted in real-time based on the coconut meat’s moisture levels, ensuring optimal drying conditions throughout the entire process.

This closed-loop system operates continuously and is completely unaffected by external weather, season, or climate conditions – enabling 24/7 production with consistent quality.

Uninterrupted 24/7 Production
Because the system operates continuously rather than in batches, processing facilities can run around the clock without downtime for loading, unloading, or reheating cycles. A single machine can process several tons of shredded coconut meat per day with consistent output quality.

Up to 60% Energy Savings vs. Traditional Dryers
The heat pump’s heat recovery mechanism consumes only electrical energy to drive the compressor and fans — no gas, oil, or biomass fuel required. Compared with electric heating dryers, this machine reduces energy consumption by 50–60%, dramatically lowering the cost per kilogram of dried product.

Superior Product Quality Retention
Shredded coconut meat is rich in natural oils and volatile aromatic compounds that are easily damaged by excessive heat. The gentle, precisely controlled drying temperatures (typically 45–65°C) preserve the coconut’s natural white color, fresh aroma, and oil content, resulting in a premium product suitable for high-end export markets.

Fully Automated PLC Touchscreen Operation
The entire drying process — from conveyor speed and air temperature to humidity setpoints and alarm thresholds — is managed through an intuitive HMI touchscreen. Operators require minimal training, and the system logs production data for traceability and quality assurance reporting.

Continuous Conveyor Drying System
The machine is equipped with a variable-speed stainless steel mesh conveyor belt that allows shredded coconut meat to move steadily through multi-zone drying chambers. The feeding thickness and conveying speed are fully adjustable to accommodate different particle sizes and moisture levels of shredded coconut meat.

Closed-Loop Heat Pump Dehumidification
A fully integrated heat pump system operates in a closed-loop configuration, separating the drying air circuit from the external environment. The evaporator continuously extracts moisture vapor from the exhaust air while the condenser reheats and recirculates the dry air back into the chamber.

Multi-Zone Temperature & Humidity Control
The drying chamber is divided into independent temperature and humidity control zones, each equipped with precision sensors and PLC-regulated dampers. The inlet zone uses moderate temperatures to avoid case-hardening, while the final zone applies slightly higher heat to achieve target moisture content.

Food-Grade Sanitary Construction
All contact surfaces — including the conveyor belt, chamber walls, air ducts, and discharge chute — are constructed from SUS304 stainless steel with polished welds and no死角, fully compliant with international food processing hygiene standards.

Maximized Production Capacity with Lower Labor Costs
Since the continuous dryer eliminates batch handling and manual intervention, one operator can oversee multiple machines simultaneously. This directly translates to higher throughput per labor hour and reduced operational staffing expenses.

Faster Return on Investment (ROI)
The combination of 60% energy savings, 24/7 continuous operation, and reduced labor requirements means the initial investment is typically recovered within 12–18 months of operation — significantly faster than conventional drying equipment.

Consistent Export-Grade Quality Batch After Batch
With closed-loop control eliminating the influence of ambient weather conditions and operator variability, every shipment meets the strict moisture specifications (typically 2.5–3.5% moisture content) demanded by international buyers and food safety auditors.

Environmentally Sustainable Production
By using electricity instead of fossil fuels and recovering waste heat rather than venting it, the heat pump dryer helps coconut processing facilities reduce their carbon footprint and comply with increasingly stringent environmental regulations in export markets.

In summary, the Continuous Shredded Coconut Meat Heat Pump Dryer Machine represents a paradigm shift in coconut drying technology — moving away from inefficient batch processes toward intelligent, continuous, and energy-optimized production. By combining the thermal efficiency of heat pump technology with the productivity of a continuous conveyor system, this machine delivers lower operating costs, higher product quality, and greater production reliability for shredded coconut meat processors of all scales. From preserving the natural white color and aroma of premium desiccated coconut to achieving the energy efficiency and automation levels demanded by modern food factories, this dryer is engineered to help your business grow profitably and sustainably in the competitive global coconut product market.

Ready to take your shredded coconut meat processing to the next level? Click the “Online Message” button below or fill in the inquiry form to connect with our technical team. We will provide you with:

• A customized quotation based on your daily processing capacity
• Detailed technical drawings and specifications
• Reference list of similar installations in your region
• Free consultation on drying process optimization

Leave us a message today — let’s discuss how this machine can transform your production line!
