Snack packaging pasteurizing machine

Place of Origin: Henan Huafood,China
Brand Name: FUAFOOD
Certification: ISO,CE,SGS
Model Number: HDF-P02
Application kimchi, milk, canned food, condiment, meat and poultry food
Chat Now!
Inquiry

Parameters

Pasteurization time( min)

10-40

Temperature

65-98℃, adjustable

Conveyor belt width (mm)

1000/1200/1500

Transmission speed

frequency control

Voltage

380v/50HZ (or customized)

Power

conveyor belt: 3kwwater pump: 4kw, air pump: 2.2KW

Steam pressure

0.3MPa

Capacity(kg/h)

1000-3000

Size(mm)

5000*1500*1650, 8000*1500*1650,
10000*1500*1650 or 12000*2200*1650
(according to your capacity and pasteurizing time)

Video

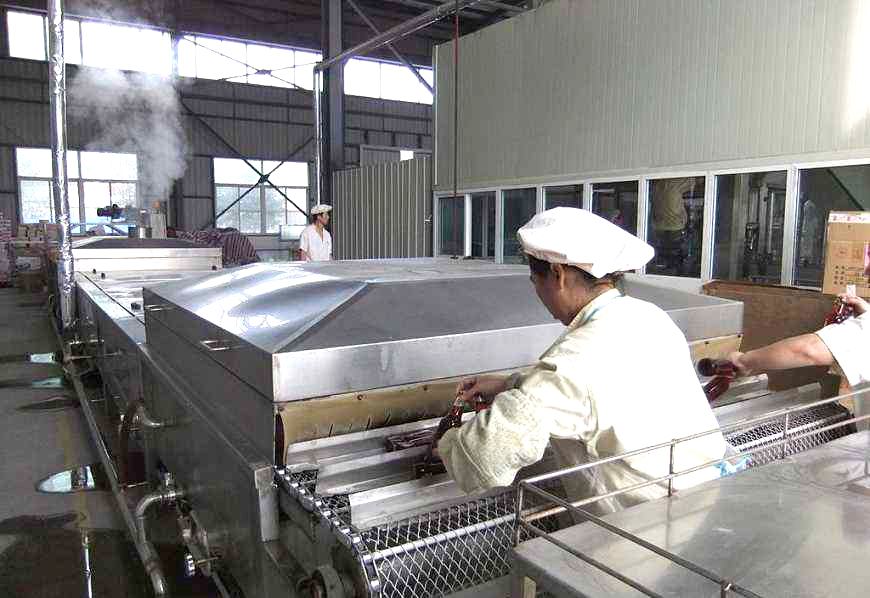

Working principle

The Snack packaging pasteurizing machine packaged mustard, kimchi, milk, canned food, condiment, meat and poultry food can be continuously sterilized at high temperature (boiling water), then automatically enter the cooling section for rapid cooling, and then enter the air dryer for air drying. Quick packing.

Feates

1. This Snack packaging pasteurizing machine used 304 stainless steel.
2. Use hot water circulation to ensure uniform temperature of the bleach tank to maintain the original color and product rate.
3. Equipped with multi-point measurement function to meet different needs of customers for product temperature.
4. This Snack packaging pasteurizing machine is equipped with an automatic heating system. Temperature can be controlled by itself, speed is controlled by frequency.
5. Each part is equipped with a surf configuration to ensure even blanching and cooling
6. The machine is easy to operate, clean and maintenance, low noise.
